Tested: Ortlieb Duffle RS140 review

In a line: Huge IP67 submersible roll duffle/backpack with integrated ‘trolley’.

Cost: £180 (shops seen from £185, typically £230).

Weight: 3170g (verified).

Where tested: A mile’s walk to a river on road, track and path.

ortRSspek

tik • Durable wheel design
• Rolls up
• Waterproof TiZip
• Non-rigid design less prone to damage
• Lockable main zip
• Exterior mesh pocket
• Detachable backpack harness
• Rigid handle eliminates bobbing
• Easy to remove wheels

cros • Costs a lot, but so do they all in this size
• PVC feels a bit thin
• Little mud clearance for wheels


ort140

What they say
… the Duffle RS is made to withstand the rigours of the most adventurous of expeditions while at the same time offering a high degree of travel comfort. The bag’s heavy-duty wheel system is connected to the body of the bag in a waterproof manner. The 100 mm wheels and the rigid floor plate made of contoured aluminium offer increased floor clearance – ideal for both airport terminals and rugged outdoor terrain. And given the importance of lightweight luggage, especially when travelling by plane, the bag’s designers opted for an adjustable grip that guarantees plenty of leg clearance and comfortable towing instead of a heavy telescopic towing frame. The foam padding at the base of the bag offers enhanced stability when the bag is fully loaded and the watertight zipper that runs across the whole length of the bag gives you quick access to your gear. The zipper can also be locked using the integrated wire loop and a small cable lock (not included).


Review

nzwhit-10

In need of a replacement for NZ, I chopped down a cheap folding trolley and lashed it to my trusty 96-litre UDB sausage bag (left). It was unstable but worked pretty well and all weighed in at just 2.7kg. With airline baggage limits at 22kg or so, luggage weight becomes important, but luggage must also be robust enough to withstand rough treatment, not least by baggage-weary baggage handlers.
This bodge was a valiant attempt at not splashing out on Ortlieb’s RS140 Duffle which I’s been eyeing up for months and fitted my needs: a stable and submersible roll bag with good clearance and integrated wheels. A few months later an unused, RS popped up on eBay about 20% cheaper than the shops and, like the feeble consumer I am, I fell for it. More gear, sigh…


ortort
ort-rg

Orlieb does two types of wheeled duffles: the RG (‘riGid’) series in 34-, 60 and 85 litres with a rigid floorplate or frame supporting an extendable aluminium handle (right), like regular wheeled luggage. And the more unusual frame-free ‘roll-able’ RS (‘Saggy’) series in 85, 100 and 140 litres.

ortwheel

Wheeled duffles are nothing new: all the major outdoor outfitters do models up to 140 litres. But like the Ortleib RGs, they all use rigid frames for the telescoping handles which sees weights exceed 5 kilos. None claim any level of IP-rated submergibility and few have a backpack harness which, at huge capacities, is more realistic than a shoulder or holdall straps.

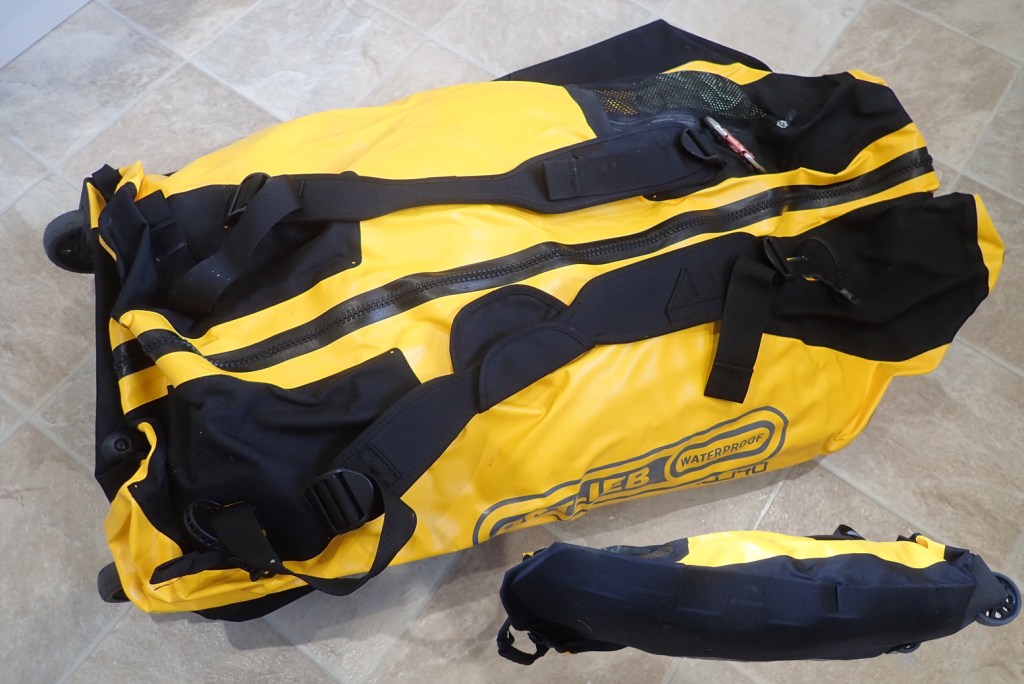

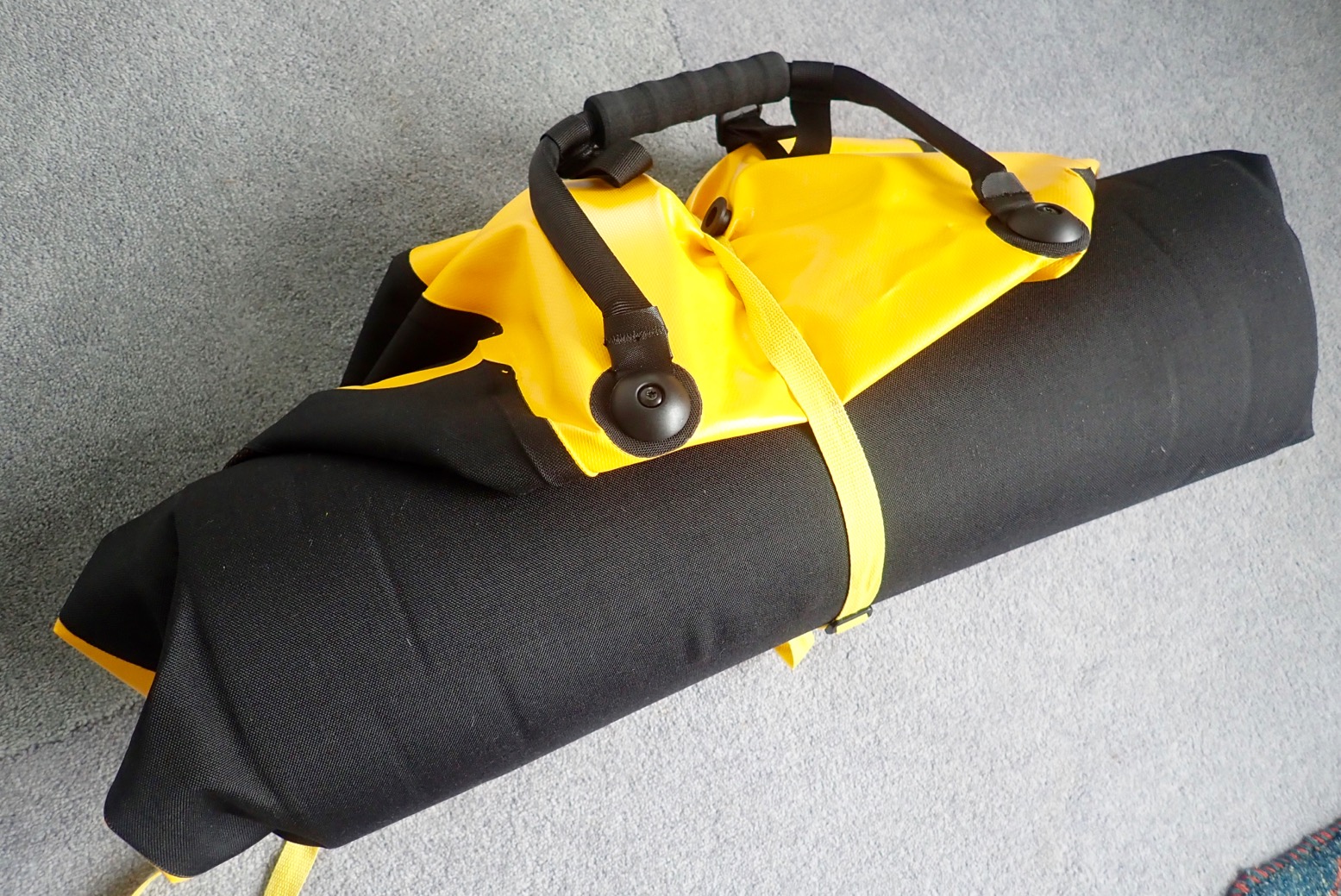

In a kayak and especially a packraft, a rigid bag is a nuisance. Only the Ortlieb RS can be rolled up (below left) and only the 140 is big enough to easily swallow a big IK and gear (below right).

With wheeled bags intended for rugged terrain, large 100mm ø wheels roll over irregularities better and can give better clearance. What’s important is a solid mounting as the bearings or axles get a hammering when loaded up on rough ground. The RS’s wheels have a smooth solid feel and have replaceable bearings and the solid alloy plate – effectively part of the axle – also takes the knocks from stones. The wheels are also easily removable with a 3mm hex key. Handy if a stone gets jammed in there or mud clogs then up

OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA

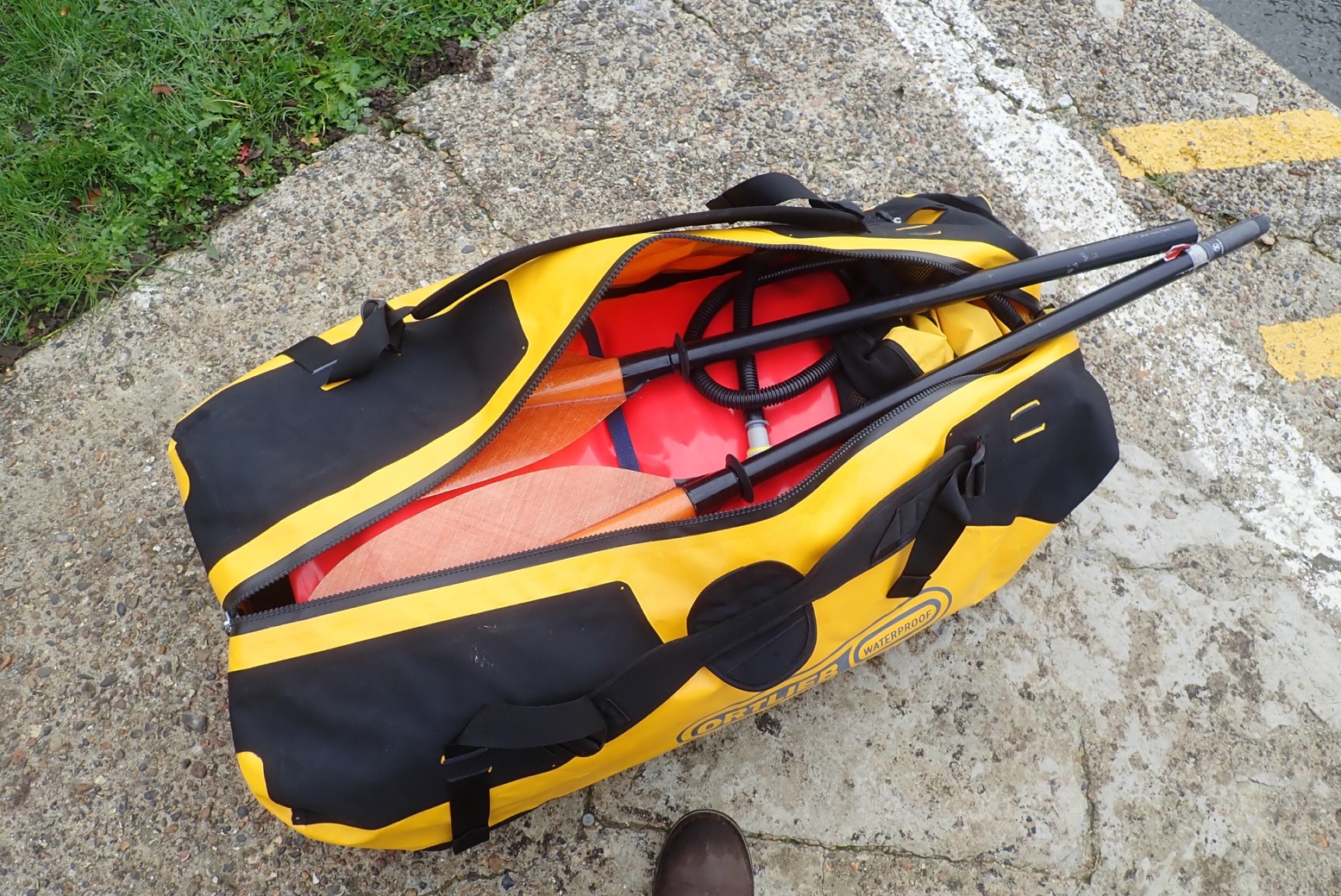

It’s the full-length TiZip which makes this bag special; IP67 rated which will do me. Because it’s long, getting my Seawave in there was easy and left 30 litres for camping and paddling clobber. If you just want a day transporter for a solo IK, the RS 100 may do you. When closed, the zip end hooks on to a stud and you can slip a padlock under an embedded cable to lock it in place (above right).
On the water, the idea is that, once you’ve deployed the boat, the bag carries the rest of your camping stuff in a more compressed form, plus with a guarantee that it won’t get wet inside. This makes the RS a truly do-it-all big-hauler on land and sea.

At the other end the two-part handle has a rigid bar and an adjustable strap for length and I found the bag rolled along better than my UDB lash-up. It didn’t bob because of the rigid handle, and it didn’t catch my walking legs either. Finally, a comfy roll bag.

OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA

Inside, a 20mm-thick foam base is glued in to protect the floor from sharp impacts; the floor gets an additional layer of Cordura on the outside too. And the compression straps incorporate a zipped document pocket. The backpack straps are thin and basic – good for stairs but not really fit for the north face of the Matterhorn. But the whole frameless soft bag sags nicely across the back and is surprisingly comfortable at 20kg all up. You’ll want to carry it on paths as below as the mud soon clogs up the narrow gap around the wheels.

OLYMPUS DIGITAL CAMERA

The backpack straps join up with velcro to make a carry handle and there’s another handy grab handle at the wheeled end. The backpack straps are removable so could easily be replaced with something cushier, but it’s a big load to carry on the shoulders for long.
Four bag-top tabs (not really ‘daisy chains‘) allow you to lash on yet more gear, like paddles. There’s also a small zipped mesh pocket (left).
The PVC is the same thickness as regular Ortlieb roll bags. For something able to carry such heavy loads and getting knocked about in and out of airports, I’d have preferred something more durable. That would of course add weight, and one good thing with this stuff is that it’s dead easy to repair, either with tape or a dab of Aquasure.

My 100-L Gumotex Seawave backpack has been rolled up from new and is stashed for when the boat gets sold. The RS is now the Seawave’s spacious travel bag. It rolls along just as well as you’d expect: nice and stable (unlike my UDB trolley set up), has good clearance and protection, (although the Cordura picks up the dirt and mud) and sits surprisingly well on the back for a frameless backpack. My 4-part Manta Ray paddle fits right in, along with a foam PFD, barrel pump and all the other day-out knick-knacks. Full camping gear with Seawave may require an extra bag.


Adding an oral inflation/suction valve

Some reviewers say the RS is saggy to roll when not packed full. I suppose that may be true. But because the RS should be airtight, fully inflated or vacuum sealed, it ought to hold that form and be less of a wheeled sack. Yes you can squish it down and do up the zip, quick. Or you can fit an oral inflation valve protected inside the exterior mesh pocket (left). They’re hard to find online; try here or here.
Now I can suck the bag down, much like I would a boat using the pump in reverse to get it compact. Do it to RS and the bag becomes ‘vacuum sealed’ and much stiffer. There’s less chance of the belly dragging on rough ground and you’d like to think less chance of snags from loose folds. Fully inflating would not be quite as effective as I find the bag cab be into an annoying bob as you walk because the air can compress. Sucked down it’s as stiff as a board.
Another good reason for a valve on a bag like this that you can blow it right up as a buoyancy aid to cross a narrow but deep river, or to get ashore after a razorbill puffin bites your boat. Either way, for wheeling rigidity or emergency buoyancy, an oral inflation valve is handy when using such a bag for paddling.

Sealed bags on planes
Whenever I checked in my UDB for a flight I always opened the zip a bit so it wouldn’t burst or strain the seams in the decompressed hold. Turns out I was over-thinking it.
Cargo holds are pressurised at the same level as the rest of the craft; a tubular fuselage shape (right) requires it to spread stresses evenly. Yes, it is reduced to 20% less than sea level pressure. That’s why some containers occasionally leak a little.
