Pumps for inflatable kayaks and packrafts

See also:
Inflation valves and PRVs
My PoV on electric pumps


Your inflatable packboat needs a pump to get going and to top-up once on the water. These functions may be best performed by two different pumps. It seems the era of the folding bellows footpump (left) is over and even low-pressure IKs now come with some sort of barrel pump.

bravohose

Suited to low-pressure (non-dropstitch) IKs the once-popular Bravo bellows foot pump looks a bit crap, but lasted well, was fairly travel-compact and was easy to use without doing your back in. Occasionally the yellow tube split near either end if packed too tightly, so needed taping up (left) or cutting down and got shorter and shorter over the years. As mentioned, the bellows era seems to have passed.
After many years a crease in the back of the bellows wore through, though that’s also easily fixed with duct tape. It’s a shame the Bravo pump is a tight squeeze into the Gumotex drybag’s outer pocket. If you use a Bravo footpump very frequently it just plain wears out, so if you’re using the car to get to the water get a barrel pump.

A plastic-bodied barrel or stirrup pump is light but bulky so not something you’d want to tour with. They’re usually used for pumping up high volume/low pressure things like rafts, lots of IKs or kite wings. Some pump on both up and down strokes to fill your boat more quickly, but automatically or manually switch to downstroke-only to reduce the effort as you reach higher pressures. They work best on flat, firm ground where you can stand on the stirrup plates and get stuck in. The Bravo 4 RED pump above is still only about £20 and will pump up an IK in 5 minutes.

sw05

I got a Bravo 6 with my Seawave once but found it hard work – who knows why. The cheaper Bravo 4 does claim to be an ‘R.E.D’ (‘reduced effort device’) and I can confirm this isn’t some gimmicky acronym. Like a Bravo foot pump, the other port on the Bravo’s handle can be used to deflate or suck air from an IK so it rolls up good and flat; you can see creases forming in the hull as you suck it down.

I left my Bravo 4 RED at home one time so bought a Sevylor RB2500G barrel pump (below left) for a tenner off ebay. Same size as the Bravo barrels, it did well for the awkward topping-up of my Semperit’s lilo plugs. It came with push-fit, lilo-plug and bayonet adaptors and sucks as well as pumps. But pumping up my Seawave from flat was exhausting towards the end: I actually got out of breath and had to rest! Morale of this fascinating story: get a Bravo 4 RED and the right adaptor for your boat.

Not all barrels have a built-in pressure gauge which is obviously dead handy in getting the right pressure without needing to faff about using a separate manometer (see below). It’s worth an extra tenner to get a built-in gauge, especially with DS boats. Or fit your own manometre: see bottom of the page.

kpump200

The K-Pump Mini (above right) is a handy top-up pump or compact 600-g travel pump. It took 15 minutes to fully inflate up my Seawave; the push-fit nozzle works on any IK with one-way spring valves. You have to press and hold the nozzle against the valve. Using it a lot one time, I got the feeling it might break something or wear out the seal (which needs regreasing once in a while). I also used the K-Pump to top up my Nomad S1 packraft which was too big and long to inflate firmly with just its airbag. Fuller review of the K-Pump Mini here. They are hard to find in the UK, the very long, and slim US-made K-Pump 200 (right) may also be suited to DS applications.

Left, the Bestway Air Hammer is an upside-down barrel pump which comes in three sizes and costs from just £6 on eBay. If you don’t want to paddle with your full-size barrel pump, the smallest Air Hammer could work as a compact top-up pump like the K-Pump below, but a tenth of the price. The one of the left came with a ROBfin and was rated at 4psi.

High-pressure pumps

More and more IKs now feature super-rigid, high-pressure dropstitch hulls – either just floors or the entire hull which runs 2–5 times higher pressures than regular IKs. Your old Bravo footpump will blow its brains out trying to reach the typical 7-10psi.
Barrel pumps with long, slim bodies (as opposed to the shorter, stockier examples above) will put out less volume (DS IKs have less volume anyway) but can more easily attain higher pressures. You don’t need a super high-pressure iSup board pump.
Some of these pumps may be double action. At a certain psi they become single action (downstroke only). I believe the Bravo Alu 4 R.E.D (0.8 bar) works like that. Or they have a switch (left) to do the same and help attain higher pressures. It works.
Whatever pump you get for your DS IK, make sure it is rated to comfortably exceed your DS boat’s pressure rating by say 50%.

Left: Bravo Alu RED <£20 • Middle: Bravo 110 >£40 • Right Itiwit (Decathlon) £20
Left: Kokopelli Nano pump ticks all the boxes: fold-out feet, screw-off handles, switch for one-way pumping as pressures increase, manometer in the handle.
Right: twice the volume Bravo Alu 4 with auto one-way switching (so it says). The bayonet valve nozzle on the Nano keeps the valve open and so is for live (constant) manometer readings. With the push-fit (non-bayonet) adapter on the blue pump suite to Boston valves, a manometer only reads as you pump and push open the valve. Both are better than soggy footpumps.

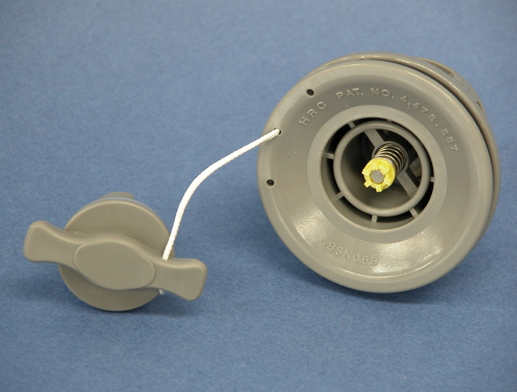

What I call ‘raft’ valves

Bayonet nozzles for ‘raft’ valves.
Who would have thought there’s something to be said about bayonet nozzles? Well there is. There are two types: plain (below right, Gumotex) and crossbar-peg or detent (left, Bravo). Both need soft spacer washers to fit snugly against your boat’s raft valve, but the small peg inside the green one will press open your valve stem as you connect it. You will notice a similar peg on car tyre inflation hoses and also on a hand manometer (below). A manometer can’t get a pressure reading without this peg partially opening the valve as you push it on. A nozzle with a peg/detent means that
a: you’re not pushing the valve spring open each time you pump (easier pumping) and
b: if your pump has a manometer you will get a constant/live reading as the pressure climbs which is the point of having a built-in manometer. The Bravo one goes from 3 quid; search: ‘Bravo Adjustable HP Valve adapter’.
The only drawback might be that you need to remove a pegged nozzle carefully with Push-Push (Gumotex) valves. Normally a little air escapes as you do this but if the valve does not spring up closed air will rush out. Turn slowly then pull away briskly; you’ll get the knack.

Pressure gauge (manometer)
Until I got a Grabner which has no PRVs but ran a relatively high, 0.3 bar (4.3 psi), I never bothered with a pressure gauge (manometer, below) and just pumped up by feel. Since then I ran a Gumotex Seawave and fitted PRVs to all chambers. That meant I didn’t need a pressure gauge to get the right pressure; I simply kept pumping until each PRV hissed: the boat was then at operating pressure.
With high-pressure DS IKs you probably want a pressure gauge as the boat will perform best at the right pressure which may be higher than you’re used to.

Add a manometer dial to a plain barrel pump

I got myself a new blue Brave 4 Alu R.E.D barrel pump (left) rated to 0.8 bar (typical DS pressure). It was under £20 without a gauge. The next similarly rated barrel with a gauge worked out at nearly fifty quid. That’s inflation for you.

Then I decided a gauge probably was a good idea in case my next IK doesn’t have full PRVs (quite likely; most don’t). I couldn’t find a way to fit my handheld manometer (as pictured above) neatly, but on ebay saw manometer dials at various displays and with rear (behind) rather than bottom inlets for a fiver (right)
I chose one which displayed up to 1 bar / 14.5psi. Whatever boat I get next, DS or otherwise, it won’t be higher than that, and anyway the Alu 4 is only rated to 11.6psi (0.8 bar).
The easiest place to drill the hole is into the hard plastic end of the hose by the handle (below). The brass thread will screw into the plastic hole easily enough, but a dab of glue does no harm. Now, finally I can measure as I pump.
If I’m honest these cheap Flowit gauges are not accurate – they under-read. But once I have measured the error against my Bravo hand manometer, I can mark the correction on the face of the dial. So as said, best to buy a barrel pump with a built in manometer – if it’s a Bravo (widely sold in Europe) it may well be accurate,

Incept K40 Tasman inflatable kayak review

What’s in the bag?

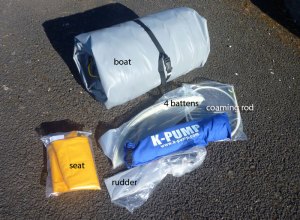

The other night I tipped out the contents of the blue bag and unrolled the boat from a factory-packed volume which, like a new Alpacka, it’s never likely to regain (see below in red). It all added up to:

Blue roll top dry bag
Boat with deck lines and all rudder controls/lines
Rudder assembly
Flexible hatch coaming rod
Inflatable seat
Four GRP battens which slip into the deck to give it form
K-Pump in a bag with adaptors and grease
Boat repair kit (glue, a dozen patches and a valve adaptor, see red)
Basic instructions and an NZ leaflet on safe sea kayaking

Dimensions
According to my atomically calibrated measuring instruments, the boat alone weighs 14.8kg + 2.2kg for rudder, seat, repair kit and pump. It’s 4.3m long, 69cm wide and 45cm wide inside (32.6lb + 4.8lb; 14′ 1″; 27″; 18″).
The table from this post compares dimensions on similar IKs. At 17kg the K40 actually feels pretty light and as long as it’s empty, not too windy and the path is easy, I can carry the kayak on my head or the back of my shoulders.

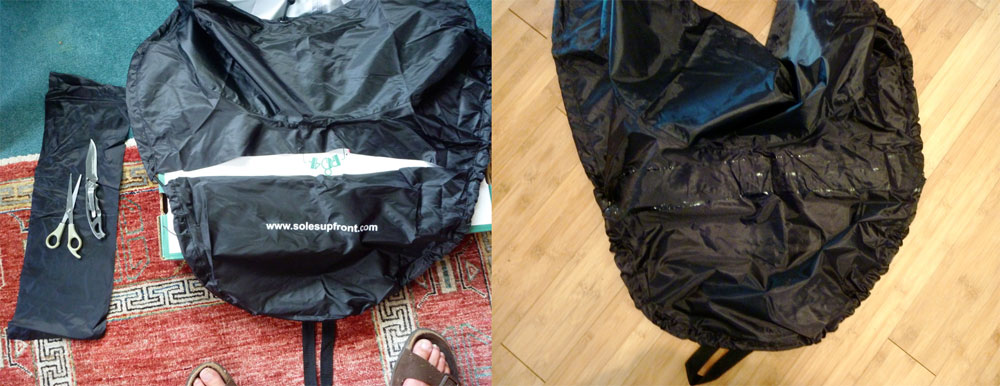

What’s not in the bag – a spray deck. You get the impression that it’s a special shape/item and so ought to be included, but I’m told it’s €103 euros for the one Incept recommend. It’s hard to ascertain exactly what you’re buying from the small image buried on their website but similar skirts go for around half that price in the UK. I bought a nylon cheapie to be getting on with. It’s actually not badly made for 19 quid, with taped seams and a decent coated material; it’s just way too long, so i had to cut it down.

Aa K40 sits a lot higher than a regular hardshell kayak, so I imagine a skirt would only be necessary when it gets really rough (by which time you probably have other issues) or cold, or you confidently expect to be able to extract yourself from capsizing with one smooth swipe of your blade. It would be nice to master a roll, but I suspect that crawling back into a K40 with decks unzipped is less difficult, especially with a paddle float. More on that here.

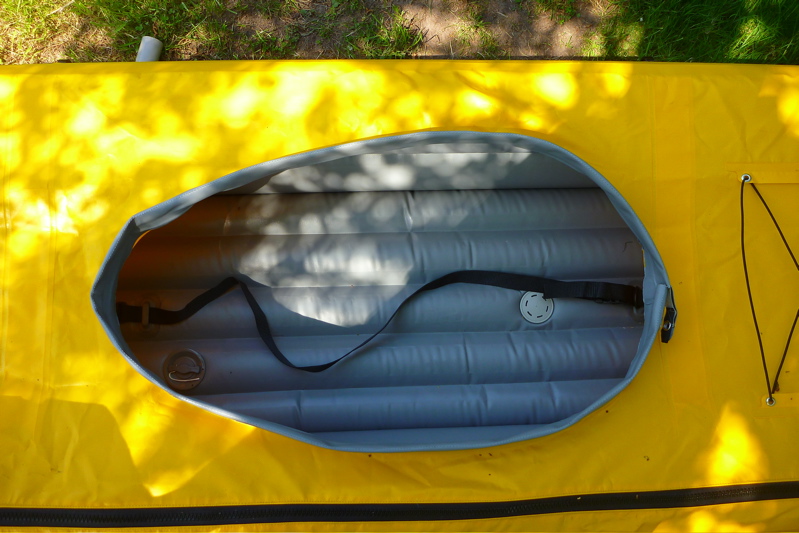

Hatch is 71cm long, 41cm wide and 186cm circumference (28″ x 16″ x 73″), if that helps you select a spray deck. Although it’s statistically small, I’ve sat in worse and as it’s not rigid, even I can pull my legs up to get out while still seated.

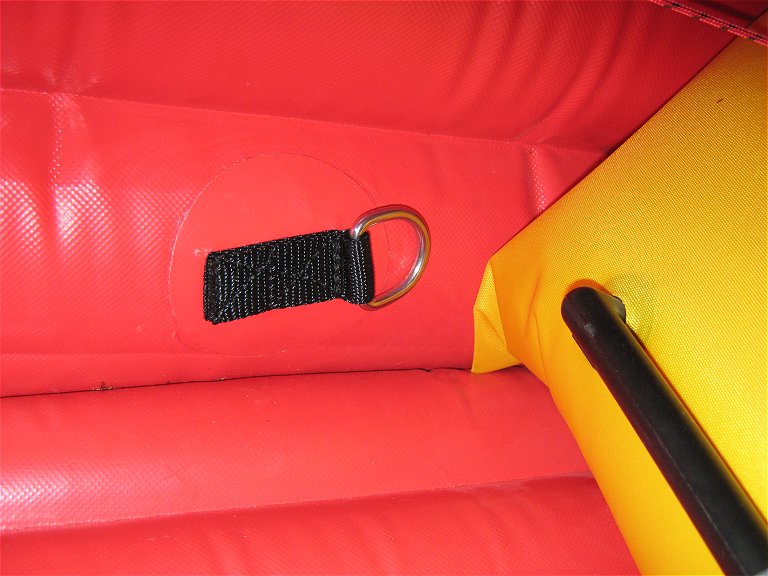

Thigh straps are a €66 option. Fair enough, but my boat has no D-rings (left, Incept’s pic) for the straps, just markings where to fix them. Some boats get patches, some don’t I was informed (probably heat-welded, left).
Otherwise it’s a lot messy work glueing some on (below left), which will either cost you over £50 for four Incept patches sent over from NZ. Or you can spend hours on the internet looking for alternatives. I fretted, thinking I must buy actual Incept ones which are made from the same PVC-urethane material as the hull. As well as clean surfaces and a good roller, on inflatables the adhesive/material combination is critical for a good, permanent seal.

The actual Incept PVC patches cost $NZ12, similar to the UK from places like PolyMarine. Or good old NRS have all sorts of patches here and among other places, they now have an outlet in Ireland (so all import taxes paid).

I bought a dozen #2097s (left) which are a bit big at nearly 5″ (120mm) but can be trimmed. NRS said that Aquaseal (aka: Aquasure in Europe) will do the job on PVC-to-PVC as well as anything, but actually one D-ring stuck on with Aquaseal came off three times.
Probably my bad application so eventually I tried the small unbranded tube of Ultraseal 777 which came with the boat’s repair kit. It’s a much thinner and runnier than Aquaseal and smells like classic Bostik, and because it was not ‘filling’ but just adhering, I thought it made a better, more pliant seal and it cured quickly too. I’ll find out for sure how the 777 patches worked in comparison with the Aquaseal.
Unfortunately, though it’s made by Bostik, I couldn’t divine whether 777 has a magical formula that perfectly suits Incepts polyurethane alloy fabric, but in future I’ll clean off with MEK solvent and use Bostik 1782 – the nearest I could guess and found cheap on ebay.
While my back was turned Bostik seem to have diversified into scores of glues from my youth when the classic, pink-tubed all-purpose glue did it all. Now they sell a glue for scores of uses which the cynical consumer can’t help thinking is marketing- rather than function led.

The SeakayakOban test boat I tried had thigh straps – straight, not as comfortable as pre-curved ones I recall having on other IKs.
Pre-curved straps hook better over the knees, so I got a pair for an SoT off amazon for £33 (left). With those brass-plated clippy things they’re heavy, but seeing as they’re so fat they could double up as cushier backpacking straps on a boat-hauling packframe.

One more annoyance: I was expecting to get the Bravo footpump which the shop I bought it from pictured and confirmed by email. I received the better, hard plastic K-Pump after I went out of my way and bought one. This inconsistency with Incept’s info (including images of models with old colour schemes, velcro decks and talk of ’25 D-rings…’ in current brochures) gets frustrating. You get the feeling Incept aren’t focussed on promoting these IKs, as if they’re a sideline to the raft business. But as long as the people on the factory floor with the scissors and heat guns are on the ball, I’m sure I’ll get over it.

Sadly, quality of construction is also inconsistent. Most of the boat is heat-welded but closer inspection revealed a lifted seam at the glued-on rudder patch (below left). The cavity here was an inch deep and took repeated injections of Aquaseal to fill, but I presume this is a patch glued on the hull, otherwise I’d have a pretty flaccid boat by now.
Nearby, a couple of hull seams had also lifted a mil or two (middle pic). It’s hard to think these would have slipped past any inspection (assuming there is one), so I presume they lifted after that point. These are the only manufacturing flaws I’ve spotted on an otherwise clean job. And to be fair the rudder patch glues around
a curve where two other layers meet, so it’s a difficult join. I’ve laddled the whole area with Aquaseal (last pic) and it’s now sealed for good.

Incepts are made from 1100 dtex Polyester fabric coated in a PVC-urethane blend. It’s notably less thick than an old-style Gumotex. Stiffer is harder to glue into tight forms (as proved above) but makes a faster boat on the water. It’s also more awkward to pack, especially when cold. I can’t see me ever rolling it up as compact as the image at the top of the page (see red text , below). I go on further about IK materials here and once, theboatpeople spoke sagely about Incepts, though it’s unclear if they’ve actually seen one in the raw (never stopped me!).

As the enclosed instructions say, the biggest risk to damaging a PVC craft is when a sharp and stiff corner of a rolled up boat scrapes on concrete or tarmac; it grinds off the coating real quick. Must remember never to do that. It’s unlikely that the PVC-U is as durable as synthetic rubbers like Nitrilon or Grabner’s EPDM, but with care, regular rinsing, squirts of 303 and the odd dab of glue, it should last.
In fact the K40 is the only IK I’ve ever punctured – just a tiny thorn tip picked up when pumping up. The second owners similarly punctured the side while pushing past a thorn three on a river and again at sea later. Knowing all this in retrospect I would say Incept’s choice of fabric for the K40 may have been not durable enough, but the only other owner of an older red and yellow boat has had no problems at all.

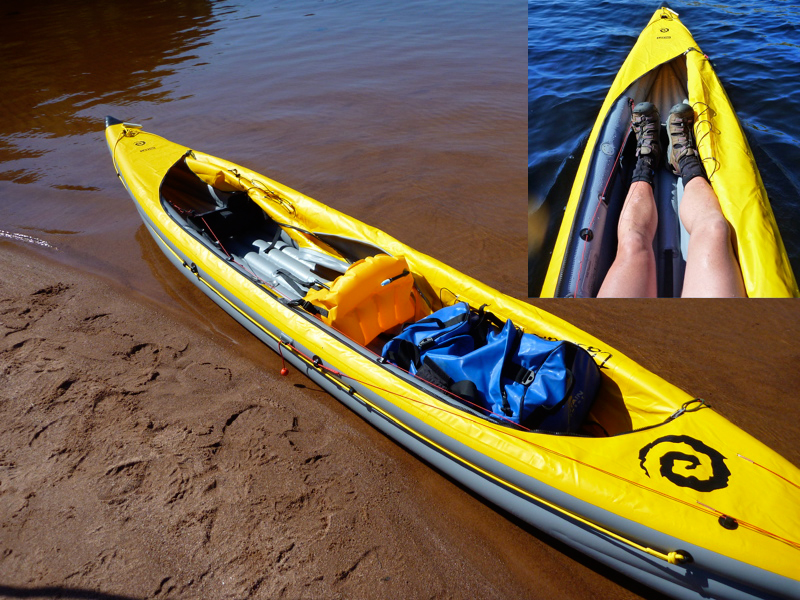

Out of the bag I pumped it up for the night and fitted and adjusted the rudder which was dead easy. Next morning all was still pleasingly firm, so off to one of the local lochs. Down on a small beach near a road, again I was surprised how effortlessly the K-Pump inflated the K’s three chambers until the PRVs start hissing at 5 psi or 0.34 bar – has high as any non-DS IK. I like the idea that on the water you’re able to top up the pump from inside the cockpit as all the valves are located accessibly by your lap, though over the course of that warm day – leaving it in the sun here, there and on the car’s roof – it wasn’t necessary. And I sure like the fact that the Halkey Roberts’ valve caps (left) twist off easily and back on securely, unlike my old Sunny’s horribly stiff and awkward items which never relented in all years or use.

Packing up a Tasman
As mentioned, the stiff PVC which responds so well on the water makes rolling and packing a K40 a bit of a challenge, especially if space is important and it’s not warm. After a few weeks of ownership I finally gave it a go. First thing to do is the suck all the air out that you can’t do by just rolling; this is something a K-Pump does not claim to do (despite what you may read), but I’ve only lately discovered a Bravo pump (left) can do once you switch the hose to the other port. With the Halkey valve opened (pressed down) the spring in the Bravo’s bellows sucks stoically until you can hear the PVC creaking. All you have to do then is yank off the push-fit hose and close the valve quick against the boat’s partial vacuum – tricky with fingers; you may need pliers.

The ABS K-Pump is heavier and as bulky as a Bravo footpump, but it’s more robust and for a hand pump is amazingly effortless. The K is the pump to use even if it doesn’t suck, but the boat comes with a bayonet valve adaptor in the spares kit. Pop that on a short length of hose and you have a manual – or oral – sucking tube to compact the K40 for transit. If this is all TMI, just say ;-).

nk4-car

First impressions on the water were a bit shaky compared to the test day a few weeks back when conditions were about the same if not even calmer. Maybe because I was alone, ill-dressed for the very cold water, and the valley caught the odd gust off the big mountains. Who knows what was up, but I doddered around like a beginner, then parked up on another beach for a walkabout, and on the way back paddled with the deck unrolled which was fun. This convertible deck arrangement is such a great idea. It’s like owning a brolly or a mac: you don’t always want it but sometimes you need it.

Part of the reason deck-free is possible is that the K uses a removable bendy nylon rod for the hatch rim or coaming (left). Remove the four chunky GRP deck-supporting battens, roll the deck back to the right side and hey presto, the legs can breath, you can get in and out gracefully and maybe even carry a light passenger.
Though thick and strong, the battens don’t seem to have any influence on pushing the boat’s sides out as far as I could tell, it’s more likely a zipped up deck holds the sides in if anything, so inhibiting longitudinal flex of the hull in rough conditions with a heavy paddler.

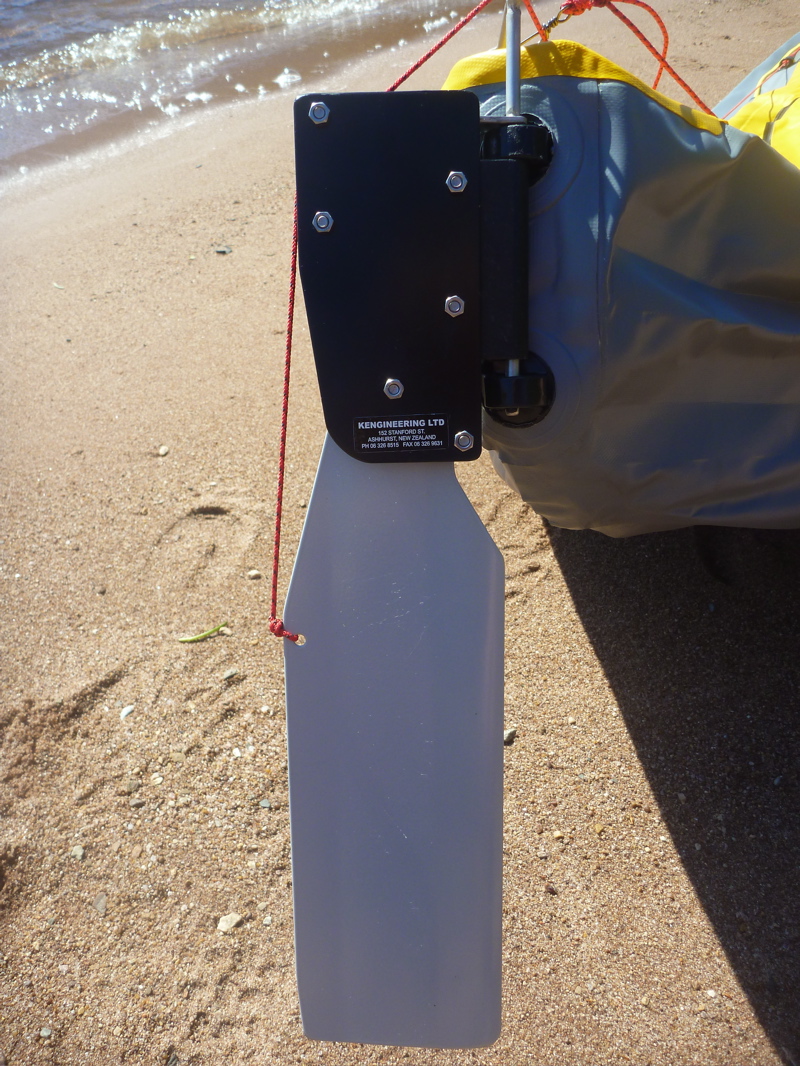

The rudder mounts easily and looks like a well made unit, though again, I’m no expert. Foot control is off some flaps on an adjustable air bag footrest using string and elastic. Not surprisingly it’s all a bit mushy, but I don’t think any IK or even any K will have a system as solid as the Amoco Cadiz. It centres naturally and so works fine as a simple straight tracking skeg which is all you want most of the time. For an impression of rudder free paddling, read this. Lift the rudder in the shallows to save damaging the mount.
If you want to slide forward down the boat (perhaps to pull the deck on or have a snooze) you can easily slip your feet under the semi-inflated footrest/rudder pedal air bag. Turning circle on full rudder lock is about 10 metres, same as our Nissan, and I also observed that you can do a 360 in this boat on the spot with 5 back strokes; in other words: less strokes than you’d imagine. Backing up is also easy with the rudder up and the rudder lift thing works fine. A rudder of course came into it’s own to correct tracking when paddling downwind or at 45° to the wind in either direction, though here is where the mushiness was noticeable. A bit more experimentation with the footrest/rudder pedal air bag pressures and seating/footrest positions may tighten things up.
So far the seat is fine and I’ve had no complaints since. It’s light and simple, but made from thick nylon (compared to an Alpacka) with two elbow valves – and it clips out in seconds, just like the modified seat in my old Sunny. But like on my old Alpacka Llama, you sometimes sit on the squashed down backrest when getting in with the deck on, which could be a pain if the situation was choppy or awkward. There is more back support with the deck on I’ve found, as you lean on the back coaming a bit. I’ve also since found even at sea it’s safe and stable to sit sideways on the seat with your feet in the water.

By the time I got back a couple of hours later I was in the mood for more so I strapped the boat onto the car (another great aspect of frameless IKs) and scooted over to the main beach opposite the Summer Isles. That morning there’d been no less than nine cars or vans with kayak racks heading out for the day. Quite right too as it was amazing weather, so much so that the blooming gorse in the hills caught fire. As I came back, the village fire engine dashed past me, trailing cobwebs and heading for the smoke palling over the Assynt to the north.
Out in the bay a pair of late hardshellers were heading out and it seemed a bit less gust prone out in the open water. After dicking about for a bit, I dared myself to head across to Tanera Mor island, about two miles across the reach. We look over to Tanera all day from our place, and on many previous occasions in the Sunny I’ve thought about it but never dared. I suspect the relative speed and higher sides of the Incept gave me the edge and the confidence.
In the island’s anchorage, flushed with the success of my monumental traverse from the mainland of Britain, I pulled over by a salmon pen and watched the caged fish flit across the surface, I presume enacting their instinctive upstream spawning surge, but here destined only for the slicer and the smokehouse. On the way back I decided to deck up for no other reason than I could, noting that when fully unzipped, I can just about reach the zip ends fore and aft to pull them closed, as long as I used the fishpen side for stability. Out at sea if it was rough a boat alongside would be needed. I’ve since lengthened the tabs on the zip ends to make them more reachable.
A small island ferry left the nearby jetty at the same time as me, and mid-crossing its parallel wake crept ever closer until at the last minute I panicked a bit and turned into it to be on the safe side. Later, a bigger fishing boat came across my bows leaving a bigger wake which was no bother taken side on. I’ve since found the K40 is fine in side waves that can make a slinky hardshell a little nervous.
No GPS but I timed myself; 25 mins to cover 2 miles which were a bit choppier than on the way out. That’s 7.2kph or 4.5mph or 3.9 knots if you must. Not bad at all and it all rather neatly validates exactly what I ruminated on earlier about getting a better boat for my time up here: dashing alone across what I would classify as ‘open’ water was one of the main reasons I wanted a faster, decked IK. The Incept has delivered on Day 1.
