Seawave Rudder MkII tested

Gumotex Seawave main page
Rudder rationale discussed
Gumotex’s 2016 factory version
Making the prototype rudder
Testing the prototype
Update 2019:
I’ve not used my MYO rudder since I made it in 2016. Partly because I’ve only done day trips predicated on nice weather, but also it’s all just more faff and clutter, not least the lines and footboard. As explained earlier, for gumsee07multi-day trips where you must deal with the winds you’re given, it’s a good idea. But even then, you only notice your relative lack of speed alongside others. Alone, you’re as fast as you are.
Rudders are not about steering or tracking as they are on powered boats; in a kayak they’re about enabling a more efficient, balanced paddling effort on both arms by compensating for the boat’s deflection for side winds. In a way the simple stock skeg-shifter (right) will do as well with much less clutter and weight. Or, use the MYP rudder, but locked-out as a lifting skeg in place of the Gumotex skeg for shallows and beach parking. That is handy to avoid stressing the stock skeg, especially when the boat is loaded.

mullamulamap

While waiting for rudder bits to turn up, we went out for an evening paddle round Eilean Mullagrach. It was pretty calm but at no point did I think, ‘Darn, I wish I had a rudder’. When it came to turning corners we just paddled hard or dragged a blade and round we came.
But the Seawave rudder project carries on like a supertanker with a jammed… rudder, if for no other reason than it’s fun to experiment and a rudder can also work as an articulated skeg when locked out – something I’ll look into when it’s all done.rudderdyl
Ironing out the flaws with the prototype added up to attaching it more securely at the back and making the pedal board out of something more responsive and durable. By coincidence, all these components can be sawn from a single piece of 450 x 300 x 12mm LDPE chopping board (left) which costs from £8 on ebay in a range of colours. This is 50% thicker than the smaller board I used on the prototype plate so doesn’t need doubling up and gluing to make it rigid.

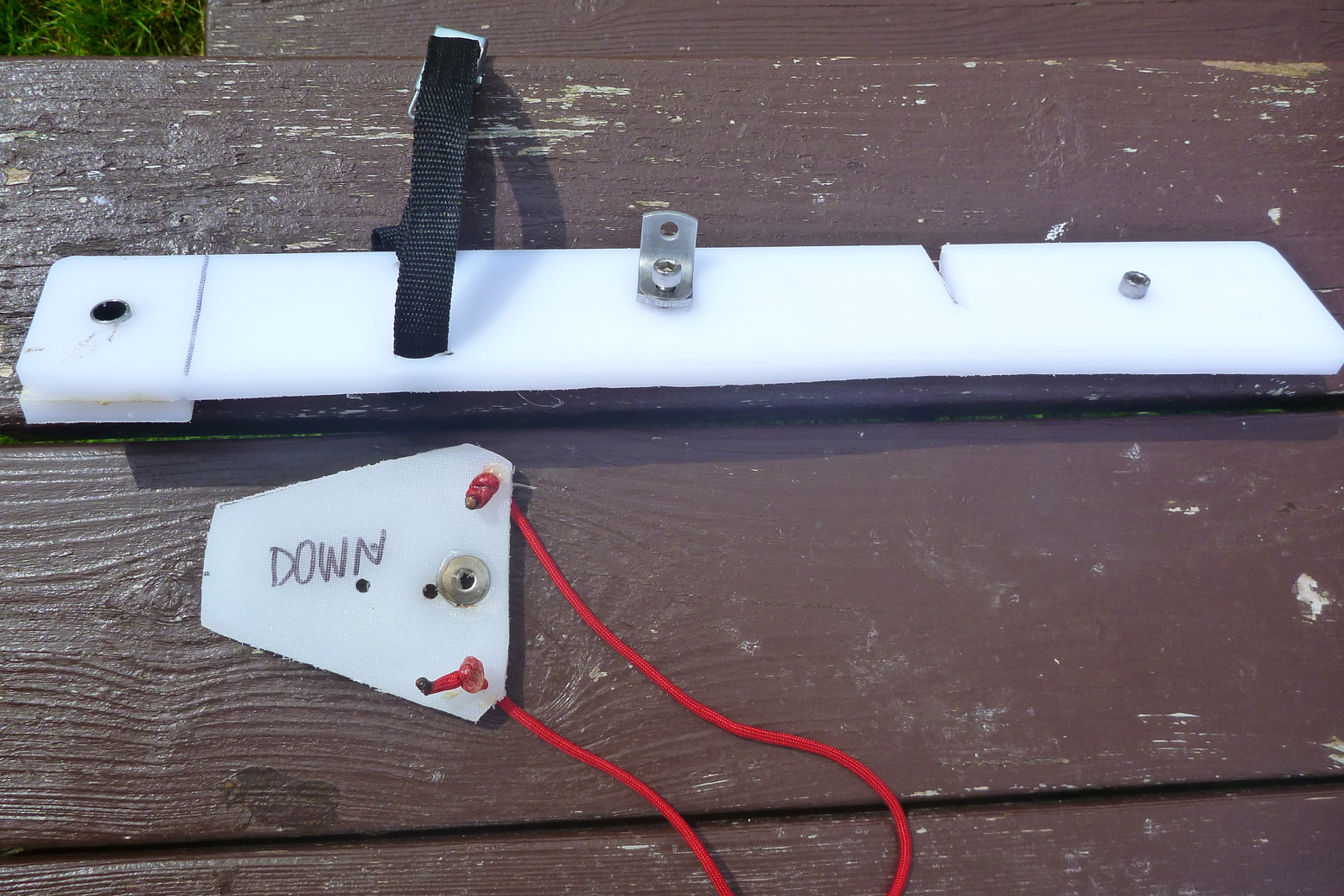

rudm211rudm21At the back I  slimmed the rudder plate right down to a simple strip of 65mm x 450mm, glued a block on the end to better support the gudgeon swivel pivot sleeve and added the crucial second fixing under the portaging handle (left). I also added a triangularish screw plate rudm23underneath (left, with red cord) so it all sits snug in the stern. With the hardware and saddle strap that now adds up to 306g (the rudder unit weighs 450g with its running lines). Even though it’s slimmer than the proto plate it weighs about the same because it’s now 12 mil. But looks a whole lot neater.
rdd5The pedal board is from the same slab but uses stainless hinges, not zip ties. I’m reminded, you’re constantly making small adjustments as you paddle so pedals need to be as taut and responsive as possible. Once I’d trimmed the board and pedals a bit (left), with hinges it came in at 660g.
rudnee1The board and maybe the pedals could have been made from 8mm if there was some to spare – but an 8mm board wants to be ~450mm wide to sit snugly in the boat’s side channels. Like the rudder, the pedal board will be subject to strong forces in heavy seas so also needs to be solidly jammed in. Meanwhile, I noticed the floor-laminate prototype  board (right) gained nearly 15% in weight after getting wet – a sign it won’t last long. Still, it made a good template.

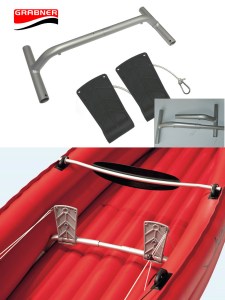

garbpedalsI do wonder if something like the Grabner rudder pedal bar (left, similar to Gael’s old H2) would be much lighter, as solid and as effective as my board. It costs €70 plus €30 for a pair of Zoelzer pedals.
I can’t really see how I could replicate that alloy footrest bar – out of copper tube filled with resin perhaps (like this motorbike rack)? It’s held securely in place without fittings by being jammed in the channel cavity between the floor and the sides (like my board), but a check with Gael advised me against it. As it happened, I’d pretty much decided the same mid test run (below). A sliding ally bar plus sea water isn’t a great combination and might bend or break, or the pedals snap. I know the ally backrest bar on my Amigo wasn’t up to it and Gael’s backrest broke (though it was ancient). My plastic version may weigh double but should be solid. Interestingly, just as a bag of clam cleats turned up make a quicker way of fine-tuning the rudder pedal lines from the cockpit, I see left that Grabner use them – a good sign.

rudhorserudm221The weather here’s about to crack and then we’re moving south, so in a rush I took the revised rudder plate out for a test with the creaky waterlogged pedal board. Heading towards Horse Island tidal passage, I didn’t need a weatherman to know which way the wind blew: from the WNW at about 12mph. Initially the boat needed constant small corrections to maintain a course, and there was some stiction, hopefully down to the zip ties on the soggy pedal board. I tried a few pedalotight turns and marvelled at the control and how sharply the boat swung round like a pedalo. The rudder plate is now as rock solid as anything fitted to an IK can be. Again, I consciously tried not to correct with my arms, just my feet, which were twitching regularly.
rudm24At Horse Island I was way too early to run the passage, but as it was probably my last paddle here till next year, I decided to head for Badentarbet. Turning north, closer into the wind the micro corrections were no longer needed and the boat ran as if on a skeg, but without arm corrections. I’m pretty sure paddling 20–30° off the wind would have required arm steering, but I just hacked away towards Rubha Dunan on the mainland as the wind increased. When I tried a bit of downwinding protracted rudder juggling ing was needed to keep the back-end in line.
rudgaprudm23I passed through a channel on the headland and the NW wind got steadily stronger so crossing the bay to the beach seemed to take ages of effort. By now the small corrections I’d been making were no longer necessary, perhaps something had bedded in, the knots had tightened up or like riding a bike I’d just got the knack of minimal rudder movement to keep the boat on track. But upwind paddling is comparatively easy so I tried across the wind, now running over 15mph, and a bit more downwinding which gave me that unsettling Ningaloo feeling. This must be the weak point of a buoyant, windprone IK (especially when unloaded), and maybe all kayaks and canoes too. The chop was only a foot high, but were there a swell of a metre or more, the rudder would be briefly lifting and the stern sliding. I wonder if in a such conditions a combination of rudder and skeg (which is always submerged) might be a way of limiting weathercocking? Or perhaps just more practice is required. There’s also another solution that might arrive here in time to try out.
rudruddAs I neared the beach the wind was hard in my face but I realised I was actually on good form, unlike on the Tanera run with the prototype. So I hammered away with all I had until my strake hissed onto the sands. Paddling hard is all helped by my brilliant, bent-shaft Werner Camano paddle, no less than ten years old this summer. It still clips rudaliotogether with a satisfyingly ‘clunk’ and has very little play. If it ever got lost or abducted by aliens I’d buy another without hesitation.
I was glad I’d got stuck into a longer test run than planned, and am now confident my MYO Seawave rudder is in the ball park. Hopefully the new pedal board will complete the job.

  • Total weight: 300g rudder plate + 450g rudder + 660g pedal board + ~100g rigging = 1.51kg (3.3lbs), or < 10% of the boat’s weight
  • Total cost MkII version: £20 rudder + £15 rigging + £8 LDPE board + £10  hinges + £2 fittings = £55

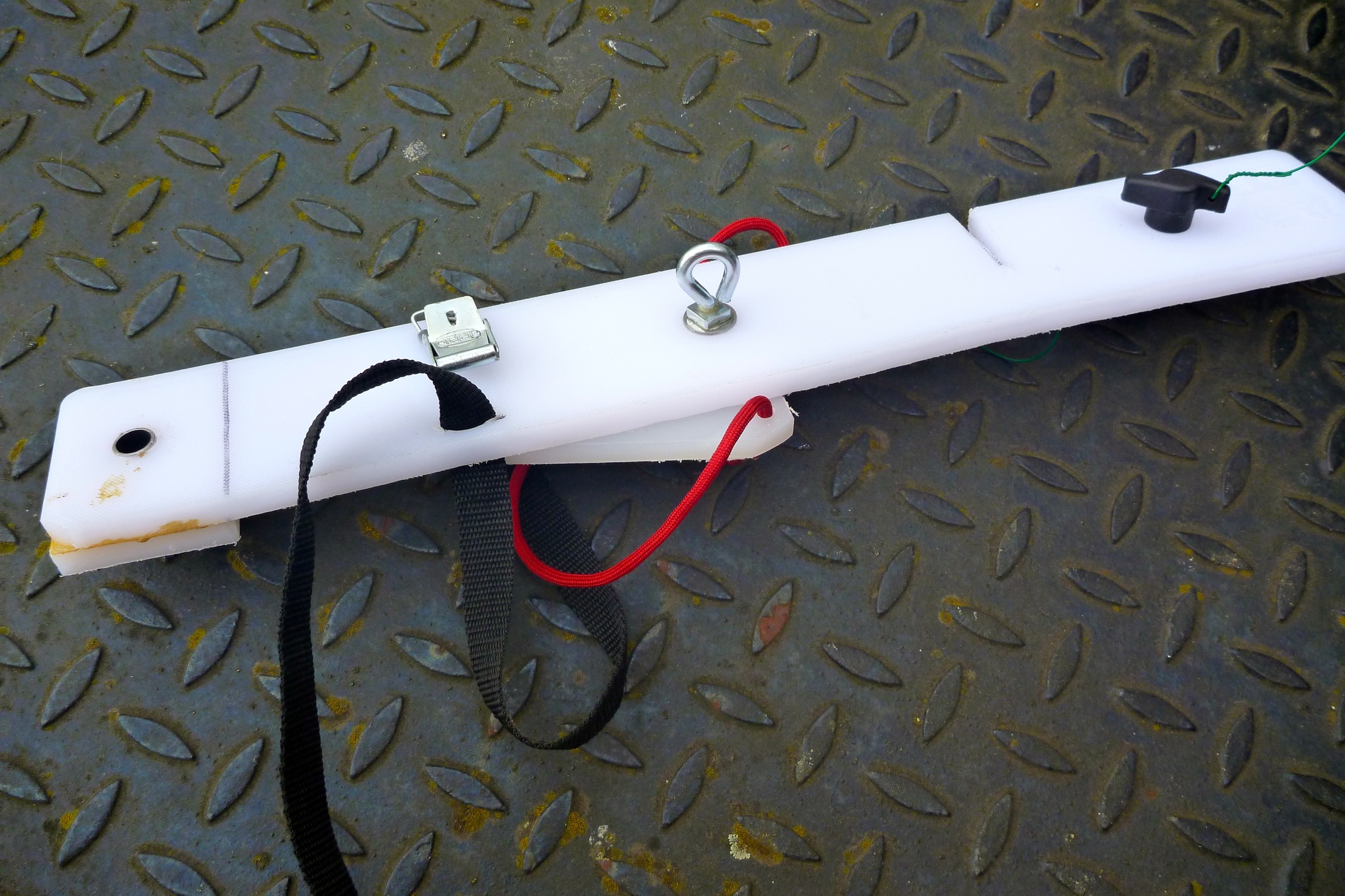

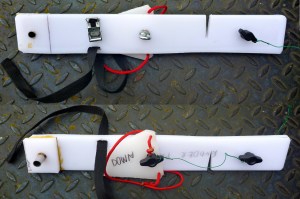

rdd4rdd2For about £200 posted I could have installed a 2016 Seawave rudder kit, but from all the images I could find at the time it was unclear exactly how it secured at the back – there must be their version of an unseen triangular underplate, but even then it’s still a stressed-out single point attachment. My additional under-handle fixture eliminates pivoting. And the plywood Gumotex footboard (right) gumrud3appears to sit loose and seemingly will also pivot on that single strap. Production versions may differ and let’s not forget that adding all this complexity also adds a risk of breakage or damage. The simplest solution is usually the best, but the 160-g skeg will always be clipped in the boat as a back-up and a Seawave is controllable (if much slower) with no tracking aids at all. It’s worth remembering: a rudder isn’t about day-to-day tracking, it’s about maintaining a course when the boat gets pushed about in stronger winds. In such conditions a skeg is essential and a rudder is an improvement, as explained here.
rudstashrudderweightsOn the beach, prior to lugging the boat over seaweed-clad boulders, it took only 30 seconds to unclip the rudder mechanism from the plate to pre-empt stumbling and damaging it. Since then I changed the rudder plate mounts with tool-free knobs and an eyelet (left). When rolling the boat up it was best to pivot the rudder plate around the drain hole 90° to pack better.

rudm25

Gumotex (Innova) inflatable kayaks

“My solution: Gumotex Solar 410C … the difference is ludicrous!”
Happy Gumotex owner after running a Sevylor Hudson for a few years.
Great website – what a wealth of information. I wish I had read it before buying my Sevylor Pointer K2, I would have bought a Gumotex. Never too late; it just costs you more. Anna M.

gumofacIn my opinion the long-established Czech Gumotex rubber gumoldefactory in Břeclav make the best-value, proper IKs in Europe (in North America they’re branded ‘Innova’). All you have to do is pick the best one for your needs. To see the latest catalog, click this.
Gumotex also made some expensive, high-pressure, super-tough models, such as these raft-wide Ks.
In 2011 they stopped selling the Sunny in Europe. The 25cm longer, but similar Solar 410C took its place – and in 2017 it became the near-identical Solar 3.
Compared to some IKs, Gumotex are simple, robust and gimmick free, and over the years the design has been refined: better skeg fitment, better removable seats (but still heavy), lighter material options while keeping gumomanuPRVs in the floors. Better push-push valves, a new suppler and lighter Nitrilon, and now with fitted or removable decked boats like the Seawave or Framura.
The sporty Safari (with a 330XL version) the Solar 3 as well as the Swings and the versatile Seawave are all great boats, and the Nitrilon Twists are light. Some might add the old, semi-decked Helios 1 and 2 to that list as well.
I haven’t owned or tried every Gumotex IK mentioned here, but in most cases know people who do- or have. The video below shows what sort of whitewater fun you can have with Gumotex IKs and even canoes.

gumistan

Gumotex IKs are what I call ‘tubeless’ (this definition has since been adopted by Innova). There’s more here but in short this is the European way of making IKs: simply gluing all the sections into a sealed inflatable vessel, like a packraft. It’s expensive but has advantages over the bladder ‘inner tube’ boats more common in the US.
Most Gumotex IKs are made out of Nitrilon, their version of DuPont’s hypalon: the original tough, EDPM-like synthetic rubber-coated fabric as used on white water rafts that lasts forever but has now been superseded by similar but lighter fabrics.
gumotexfabrics18You might have thought that full-coat Nitrilon over a bit OTT so a few years ago Gumotex introduced LitePack (later called Nitrilon Lite) on low-end IKs like the Twist, with the rubber coating only on the outside. It saved weight but the boats proved to be less durable and Nitrilon Lite was quietly dropped in 2018. (A mate of mine has many failures with his Lite Twists).
As mentioned the current Nitrilon (as on my Seawave) feels thinner and more supple than the original less shiny and stiffer Nitrilon of years ago. Maybe it’s not as tough but I bet it’s lighter.
One thing you should know with Gumboats is that all except the Seawave (and the Ks) are rated at 0.2 bar or 2.9psi, something for which a Bravo footpump is fine. This is better pressure than many other IKs, but not like the 0.3 bar boats from Incept and Grabner. I’ve read of Gumboaters running more than the recommended pressure in the side tubes to make the boats stiffer and more responsive. I suspect they could take it as long as they don’t get too hot out of the water. Running at the recommended pressure can mean that when a boat gets over 3.5m long – like the Solar 3 – it will flex in the swell or rough water. This was a nuisance with my Sunny in roughish seas because it seawavebadenswamped over the sides.
But even on flat water, long boat flexing can mean reduced speeds if you’re heavy like me. Apart from going on a diet, I considered various ideas to fix that, but in the end settled on a discontinued Grabner Amigo, a basic boat best described as a ‘high pressure’ Solar 3. It was solid as a brick but expensive. I sold the Amigo and since 2014 have run a Seawave which I have adapted in various ways, including running over-pressure side tubes with added PRVs.
For waterside holiday fun to longer touring expeditions, you can’t go wrong with a Gumotex IK.
